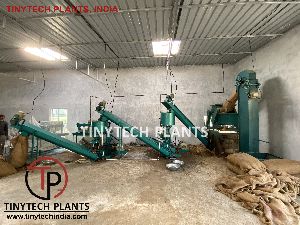

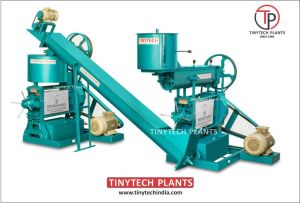

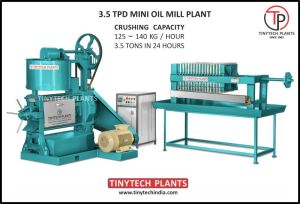

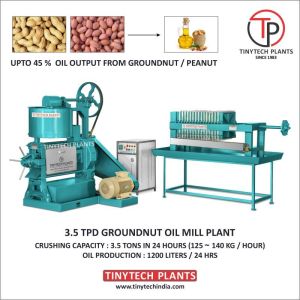

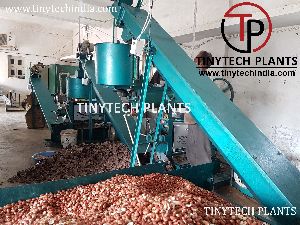

Automatic Groundnut Oil Mill Plant


Automatic Groundnut Oil Mill Plant
Price : 12.5 Lac / PLANTGet Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Power 32 HP
Voltage 420V
Warranty 1 YEAR WARRANTY
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Model Name/Number
TINYTECH AUTOMATIC GROUNDNUT OIL MILL PLANT
Brand
TINYTECH PLANTS
Design
HIGHLY EFFICIENT DESIGN
Electric Motor
12.5 HP and 10 HP
Input Capacity
6 TONS
Working Capacity
260 Kgs / hour
Chamber Size
22" x 4
Man power
2
space
600 Square feet
Expeller Chamber
Steel Fabricated Chamber
Foundation Frame
Provided
Filter table
Provided
Cake Thickness
Adjustable
Water Requirement
600 litter
No. of Filters
2
Boiler
included
Groundnut decrticator
included
Spare Parts
included
Profit
Rs. 10000 by working 12 hours
Numbers of Conveyor
3
Bucket elevator
Included
Payment Terms
T/T
Delivery Time
12-13 Days

Special Facilities / Features In Tinytech Expeller



  • Chamber cage opens on hinges simply by tilting of chamber halves. Drudgery of lifting of heavy weights of clamping bars and chamber halves are totally eliminated.

  • Thickness of oil cake can be changed while running of expeller. This is unique facility. It enables to change thickness of cake while running of expeller. This is unique facility of Tinytech expeller.

  • Oil pump is now integral part of oil expeller and hence no separate pump required.

  • Due to ready foundation frame, No foundation of any machine required in the ground. So Installation becomes easy & plant can be started within 24 hours. Also you can shift machine easily from one place to another as and when required.

  • 6 taper roller bearings make expeller very sturdy and durable. No ball bearings fitted anywhere.

  • As expeller is very compact, it is economical to import by air freight for land locked countries.

  • Feedbox mouth has been made bigger so that expeller can crush cotton seeds effectively.

  • Main pulley Shaft diameter is 62 mm which is highest in the industry.


Features Of Oil Expeller



  • Superior Performance of the Machine

  • Cast Iron Bodies & Base

  • Single Reduction Gear Box with Spur Gears, low maintenace

  • Case Hardened Worm Assembly

  • Superior Quality of Oil & Cake

  • Long Life Span and Durability

  • Latest innovative technology
