Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Capacity | 120 Kgs per hour |
| Usage | all kind of oil |
| Type | Oil Press |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Brand Name
TINYTECH PLANTS
Material
Mild Steel
Voltage
415V
Condition
New
Power
9-12kw
Driven Type
Electric
Phase
Three Phase
Warranty
1 Year
Country of Origin
India
Operating Type
Semi Automatic
Model Name/Number
TINYTECH OIL EXPELLER
Size
22 x 4
Hp Power
10 HP - 12.5 HP
Expeller Chamber
Steel Fabricated Chamber
Foundation Frame
Provided
Cake Thickness
Adjustable
Machine life
More than 40 years
Suitable for
all kind of oil seeds
Oil pump
attached with the machine
Payment Terms
T/T
Delivery Time
7-8 days
- Chamber cage opens on hinges simply by tilting of chamber halves. Drudgery of lifting of heavy weights of clamping bars and chamber halves are totally eliminated.
- Thickness of oil cake can be changed while running of expeller. This is unique facility. It enables to change thickness of cake while running of expeller. This is unique facility of Tinytech expeller.
- Oil pump is now integral part of oil expeller and hence no separate pump required.
- Due to ready foundation frame, No foundation of any machine required in the ground. So Installation becomes easy & plant can be started within 24 hours. Also you can shift machine easily from one place to another as and when required.
- 6 taper roller bearings make expeller very sturdy and durable. No ball bearings fitted anywhere.
- As expeller is very compact, it is economical to import by air freight for land locked countries.
- Feedbox mouth has been made bigger so that expeller can crush cotton seeds effectively.
- Main pulley Shaft diameter is 62 mm which is highest in the industry.

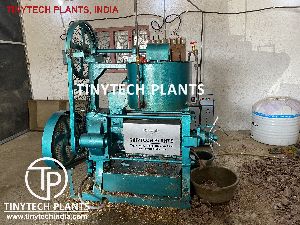

Looking for "Tinytech Oil Expellers" ?
