Tinytech Plants

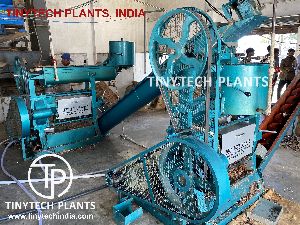

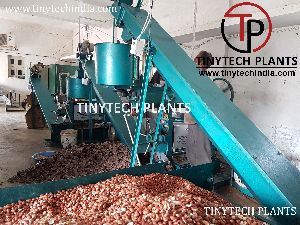

Automatic Oil Mill Machinery


Automatic Oil Mill Machinery
Price : ₹ 11 Lac / PLANT
Get Best Price

Product Details

Application Making Cooking Oil
Voltage 420V
Condition New
Automatic Grade Automatic
Driven Type Electric
Warrenty 1year
Country of Origin India
Power 25 HP - 32 HP
Brand TINYTECH PLANTS
Design Highly efficient
Electric Motor 10 HP and 12.5 HP
Working Capacity 130 Kgs / Hour
Warranty 1 Year Warranty
Chamber Size 22
Model Name/Number TINYTECH AUTOMATIC OIL MILL MACHINERY
Expeller Chamber Steel Fabricated Chamber
Foundation Frame Provided
Cake Thickness Adjustable
Number of Filter press 2
Filter table provided
Boiler included
Spare parts provided
Water requirement 600 litters
Number of conveyors 3
Bucket elevator included
Groundnut decorticator included
sunflower/ soyabean cracker included
coconut cracker included

Additional Information

Min. Order Quantity 1 Piece
Payment Terms T/T
Delivery Time 10-12 Days

Special Facilities / Features In Tinytech Expeller

  • Chamber cage opens on hinges simply by tilting of chamber halves. Drudgery of lifting of heavy weights of clamping bars and chamber halves are totally eliminated.
  • Thickness of oil cake can be changed while running of expeller. This is unique facility. It enables to change thickness of cake while running of expeller. This is unique facility of Tinytech expeller.
  • Oil pump is now integral part of oil expeller and hence no separate pump required.
  • Due to ready foundation frame, No foundation of any machine required in the ground. So Installation becomes easy & plant can be started within 24 hours. Also you can shift machine easily from one place to another as and when required.
  • 6 taper roller bearings make expeller very sturdy and durable. No ball bearings fitted anywhere.
  • As expeller is very compact, it is economical to import by air freight for land locked countries.
  • Feedbox mouth has been made bigger so that expeller can crush cotton seeds effectively.
  • Main pulley Shaft diameter is 62 mm which is highest in the industry.
