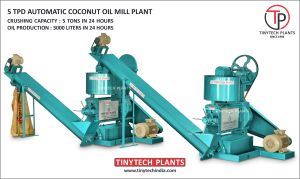

Coconut Oil Mill Plant


Coconut Oil Mill Plant
Price : ₹ 10 Lac / PLANT
Get Best Price

Product Details

Capacity 5 Tons / 24 Hours
Power Consumption 3 Phase
Power 32 HP
Model Name/Number TINYTECH COCONUT OIL MILL PLANT
Design HIGHLY EFFICIENT
Brand TINYTECH PLANTS
Voltage 420V
Electric Motor 12.5 HP and 10 HP
Input Capacity 5 TONS
Working Capacity 125 Kgs / 24 Hours
Warranty 1 Year Warranty
Chamber Size 22" x 4"
Frequency 50 Hz
Size 22" x 4"
Man power 2
Expeller Chamber Steel Fabricated Chamber
Foundation Frame Provided
Cake Thickness Adjustable
Filter press Included
Filter table Included
Spare parts Included
Space 600 Square feet
Coconut cutter Included
Profit Rs.8000 by working 12 hours
Numbers of Conveyor 2

Additional Information

Min. Order Quantity 1 Piece
Payment Terms T/T
Delivery Time 10-12 Days

Special Facilities / Features In Tinytech Expeller



  • Chamber cage opens on hinges simply by tilting of chamber halves. Drudgery of lifting of heavy weights of clamping bars and chamber halves are totally eliminated.

  • Thickness of oil cake can be changed while running of expeller. This is unique facility. It enables to change thickness of cake while running of expeller. This is unique facility of Tinytech expeller.

  • Oil pump is now integral part of oil expeller and hence no separate pump required.

  • Due to ready foundation frame, No foundation of any machine required in the ground. So Installation becomes easy & plant can be started within 24 hours. Also you can shift machine easily from one place to another as and when required.

  • 6 taper roller bearings make expeller very sturdy and durable. No ball bearings fitted anywhere.

  • As expeller is very compact, it is economical to import by air freight for land locked countries.

  • Feedbox mouth has been made bigger so that expeller can crush cotton seeds effectively.

  • Main pulley Shaft diameter is 62 mm which is highest in the industry.


Features Of Oil Expeller



  • Superior Performance of the Machine

  • Cast Iron Bodies & Base

  • Single Reduction Gear Box with Spur Gears, low maintenace

  • Case Hardened Worm Assembly

  • Superior Quality of Oil & Cake

  • Long Life Span and Durability

  • Latest innovative technology
