Mini Oil Expeller


Mini Oil Expeller
Price : ₹ 1.3 Lac / PLANT
Get Best Price

Product Details

Model Name/Number TINYTECH MULTISEED OIL EXPELLER
Size 22 x 4
Brand TINYTECH PLANTS
Hp Power 10 HP - 12.5 HP
Motor 10 HP - 12.5 HP
Voltage 415V
Net weight 550 Kgs
Expeller Chamber Steel Fabricated Chamber
Foundation Frame Provided
Cake Thickness Adjustable
Machine Life More then 50 years

Additional Information

Min. Order Quantity 1 Piece
Payment Terms T/T
Delivery Time 7-8 Days

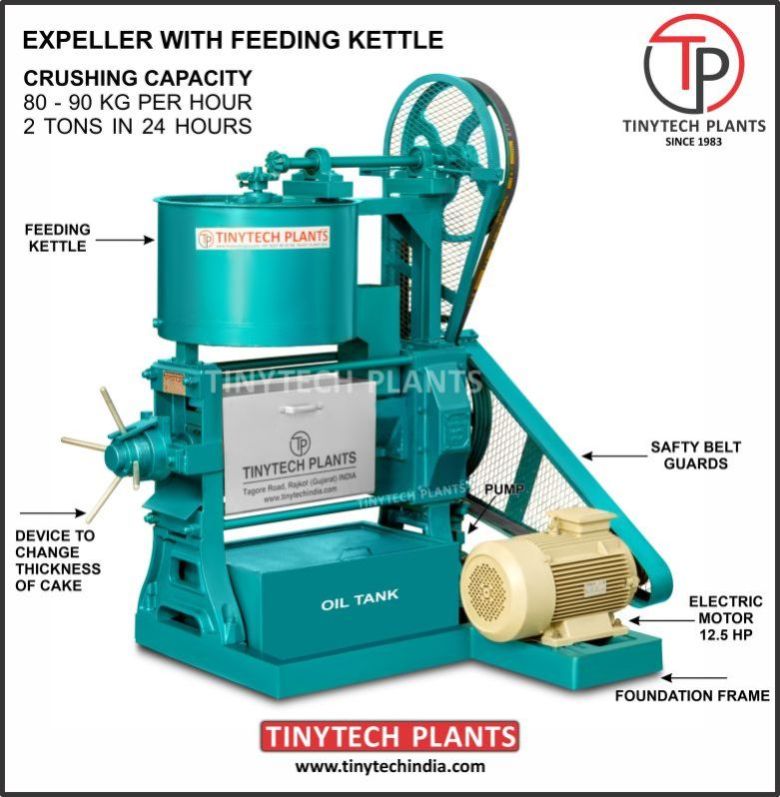

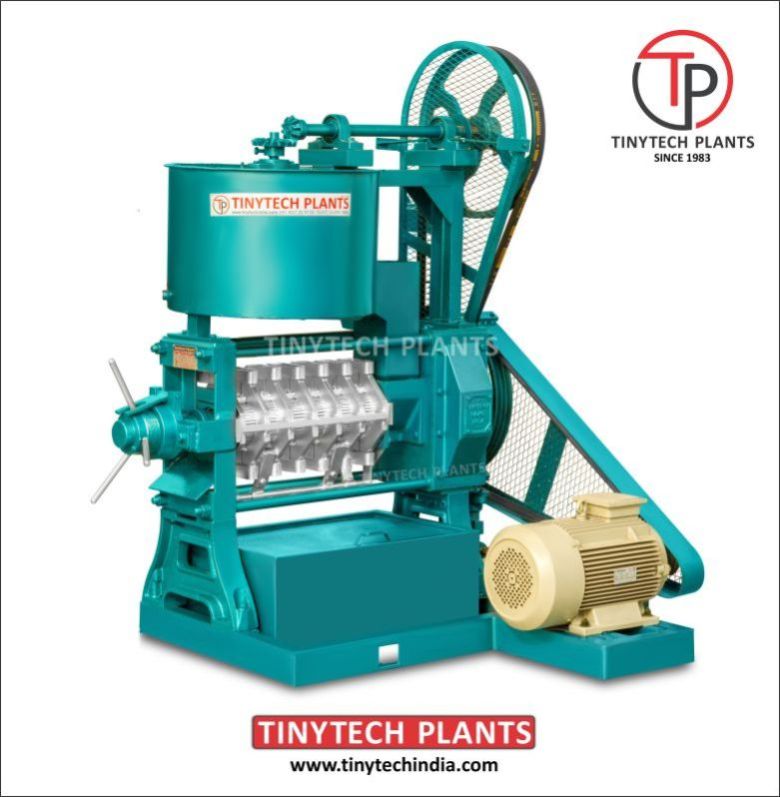

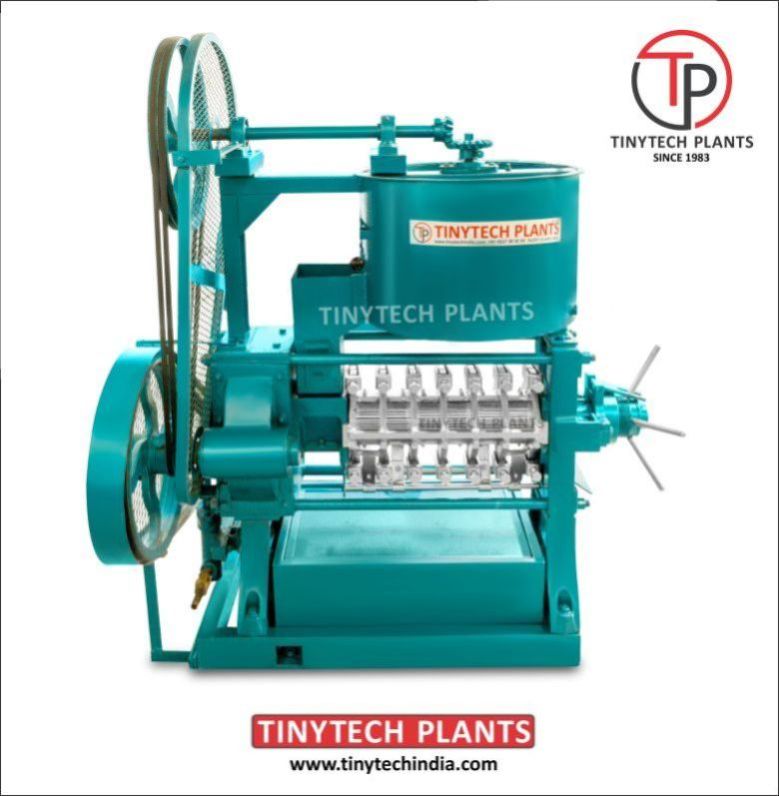

It crushes all type of oil seeds and produces best quality cooking oil and cake. It is the central part of the whole extraction plant.


Oil Expeller chamber size 22'' x 4'' crushes about 150 kg oilseeds producing oil and oil cake. Oil falls down in the small rectangular tank which is kept below the expeller and oil cake comes out from another side. Generally, for oil seeds having oil content more than 25% are crushed twice in the expeller for maximum recovery. During the first crushing thickness of cake is kept about 8~10 mm. And during the second crushing thickness of cake is kept about 3~4 mm.
